Screws Bolts DIN 7380 ISO 7380 3D Model (dwg)

3D Models » Industrial 3D Models » Other Industrial » Screws Bolts DIN 7380 ISO 7380

3D Model by 20081972

Library Screws Bolts DIN 7380 ISO 7380 AutoCAD 2007 2010.
In the RAR-archive contains 7 files with 3D-libraries bolts with metric thread: M3, M4, metric thread 5mm, metric thread 6mm, M8, M10, M12.
On the files there are no limits - because they can change at their discretion. All sizes of products made in full compliance with standard DIN 7380 ISO 7380.


A bolt is an externally threaded fastener designed for insertion through holes in assembled parts, and is normally intended to be tightened or released by torquing a nut. A screw is an externally threaded fastener capable of being inserted into holes in assembled parts, of mating with a preformed internal thread or forming its own thread, and of being tightened or released by torquing the head. Screws and bolts do many of the same things but there are many types and you should consider what you need it to do before choosing one or the other.

There are not really hard set distinctions between bolts and screws but they do have a few specifications. Some examples of screws are Headcote Screws, Heavy Hex Screws and Hex Cap Screws, examples of bolts are Heavy Hex Bolts. The bolts are made with uniform threads satisfying the standard specifications such as UNJ, UNR, MJ etc. and are used in most industrial applications – secured with a spring-washer or a locktite. Screws are headed externally threaded types of fasteners without meeting the standard specifications of the bolts. They are shafts with provision at one end to turn the screw and have a helical thread on its surface, which is capable of piercing strongly into the surface.

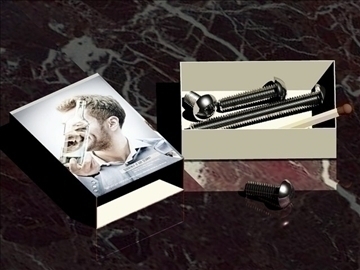

At FlatPyramid, we have designed a 3D model of a Screw-bolt with Matchbox which can be useful in various applications like in animated movies, games, animations, architecture, etc. We have created this high resolution and accurate 3d model with accurate dimensions in AutoCAD drawing (.dwg) file format and hope you have found your exact piece here.

Thank you for showing interest in buying 3D model from FlatPyramid which are also available to download for commercial, non-commercial, and editorial use. However, if you have any queries feel free to contact us and we will be glad to assist you..

Available Sample File for Download

USD $8.80 $8.00
card Safety
Delivery Format: Download Only!

Available Source 3D Model File Formats

Specifications

  • Vertices
  • Polygons
  • GeometryPolygonal
  • AnimatedNo
  • MaterialsYes
  • RiggedNo
  • TexturesYes
  • File-formatsAutoCAD drawing (.dwg)
  • NID23342
  • LicenseRoyalty Free
  • Copyright TransferredNo
  • ResellableNo
3D Model ID: 190436

Published on: February 13, 2011
