UK electrical switches & sockets pack – flush meta 3D Model (3ds fbx skp obj)

3D Models » Other 3D Models » UK electrical switches & sockets pack – flush meta

3D Model by Pixelblock

A complete collection of flush metal style switches and sockets. The models are accurately scaled and component parts are grouped for easy manipulation eg. to turn switches on or off. Texture maps are included for surface text/symbols, as well as a bump map used for the brushed metal effect, if required. Also, where there are neons, a rectangular object exists at the back which can be used as a light source. The package includes the following (triangle counts shown):

LIGHTING:
1 gang dimmer - 1830

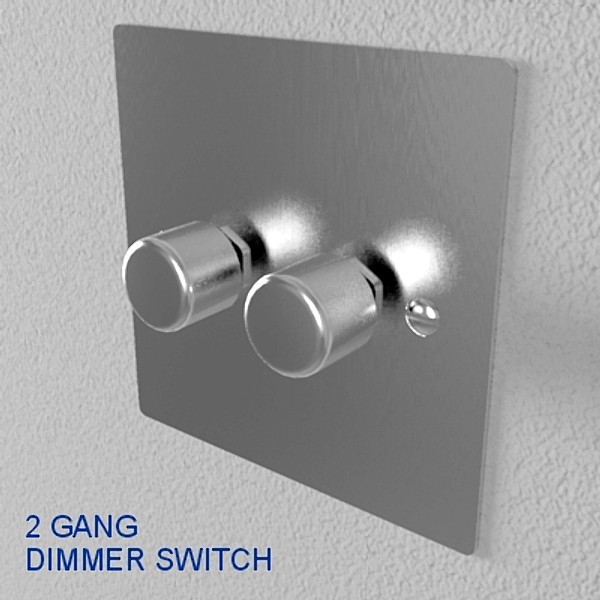

2 gang dimmer - 2616
3 gang dimmer - 3402
4 gang dimmer - 4188
1 gang switch - 1814
2 gang switch - 2572
3 gang switch - 3338
4 gang switch - 4100
6 gang switch - 5628
1 gang toggle - 2480
2 gang toggle - 3916
3 gang toggle - 5436
4 gang toggle - 6904
2 amp socket outlet - 1777
shaver socket outlet - 2166

POWER:
single unswitched socket outlet - 1614
single switched socket outlet - 1943
single switched socket outlet with neon - 2407
twin unswitched socket outlet - 2178
twin switched socket outlet - 2696
twin switched socket outlet with neon - 3664
flex outlet - 1412
fused spur - 2127
switched fused spur - 2881
switched fused spur with neon - 3339
switched fused spur with neon and flex outlet - 3731

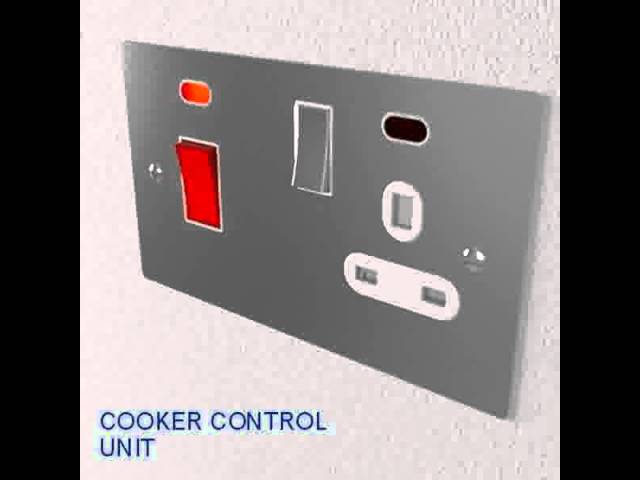

cooker control unit (with neon) - 3680
20 amp switch (with neon) - 2306
45 amp switch (with neon) - 2306
fan isolator switch - 1808
single floor mounted socket outlet - 3253
twin floor mounted socket outlet - 5052

COMMS/DATA:
single telephone socket - 1591
twin telephone socket - 2132
single RJ45 socket - 1775
twin RJ45 socket - 2500
TV socket (coaxial) - 1840
Satellite socket (F-type) - 2034
TV + FM socket (coaxial) - 2630
TV + Satellite socket (coaxial & F-type) - 2824

single blank plate - 1044
double blank plate - 1044


Available Sample File for Download

USD $30.00
card Safety
Delivery Format: Download Only!

Available Source 3D Model File Formats

Specifications

  • Vertices
  • Polygons
  • GeometryPolygonal
  • AnimatedNo
  • MaterialsNo
  • RiggedNo
  • TexturesYes
  • File-formats3D Studio (.3ds), Autodesk FBX file (.fbx), Sketchup (.skp), Wavefront (.obj)
  • NID25382
  • LicenseRoyalty Free
  • Copyright TransferredNo
  • ResellableNo
3D Model ID: 192347

Published on: May 24, 2011
