Realistic 3d model of Panels Boards of Helicopter Mi-8MT / Mi-17MT
File formats: 3ds Max 2015 (V-Ray 3.30.04), OBJ, FBX, 3DS
Game ready - perfectly fits for Unity and Unreal
Low poly
Real world scale
Units used: cm
You can buy each board separetly (see Artist page)
- The model is animated. All pivots are in the right positions.
- The model has trialngular and quadrangular polygons only (9% tris and 91% quads)
- The model has logical hierarhy
- The model has 834 separate objects (Draw Calls)
- The model is available with prints in English language (https://www.flatpyramid.com/3d-models/vehicles-3d-models/aircraft/helicopter/mi-8mt-mi-17mt-panel-boards-english/)
- The model contains
355 229 polys
678 200 tris
374 886 verts
- Each board joined in one group
- All parts are fully UV unwraped. No multi-materials or color fills.
- All parts and materials have logical names and ready for coding. (no names such as Object001 or Default - 01)
- Some identical parts have the same UV coordinates (overlapped). It saves textel resolution and does not influence on Ambient occlusion map (no black spots)
- PBR textures are available for Specular-Glossiness and Metalness-Roughness workflows

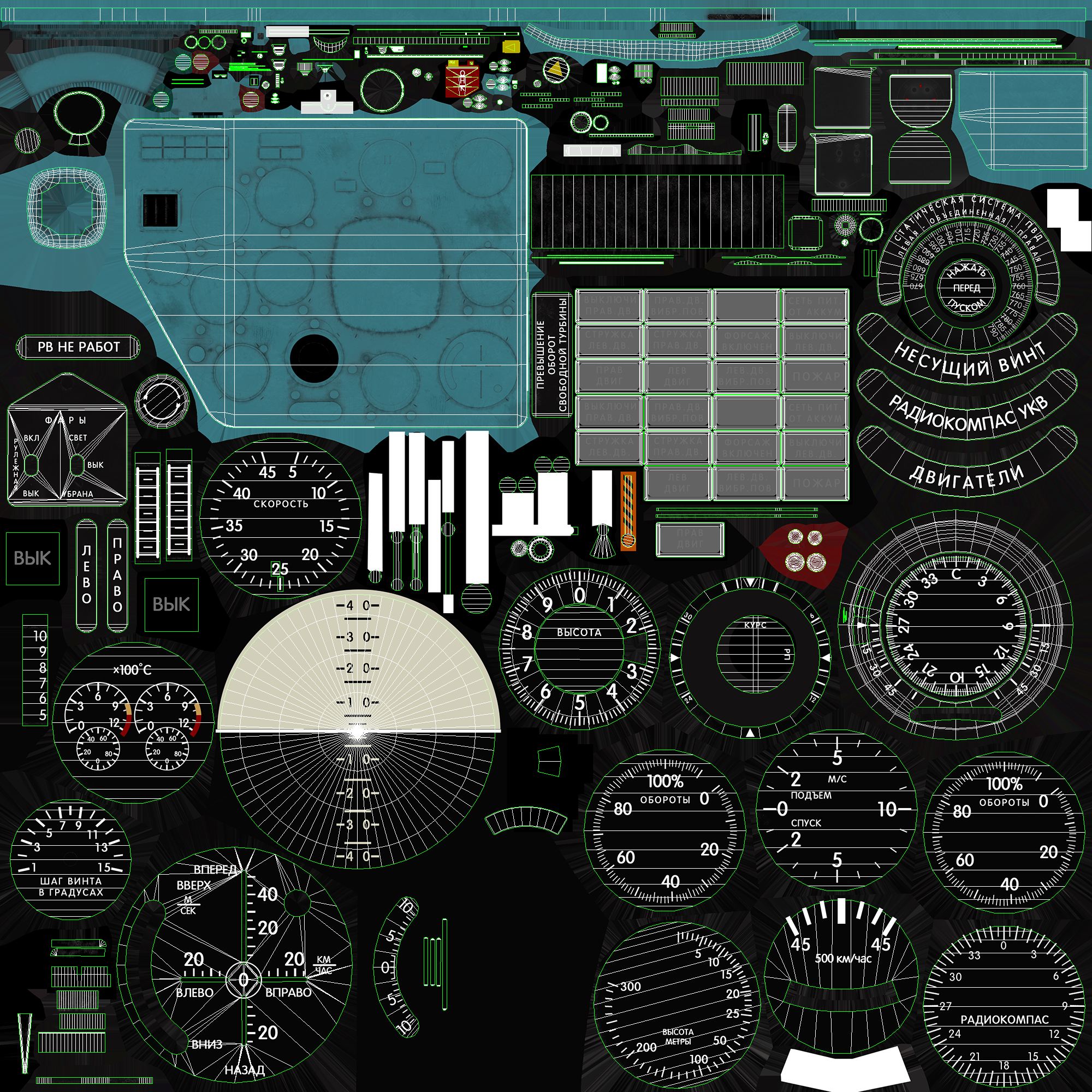

Textures (*.PNG):
=========================
Material_A, Material_B, Material_C, Material_D, Material_E, Material_F - 4096x4096
Material_G - 2048x2048
- Diffuse
- Specular
- Glossiness
- Base color
- Metallic
- Roughness
- Normal
- Ambient Occlusion
- Emission
Glass - 3072x2048
- Diffuse
- Specular
- Glossiness
- Base color
- Metallic
- Roughness
- Ambient Occlusion
- Opacity
Originally created with 3ds Max 2015. No 3rd party plugins required.
Software used:
- 3ds Max 2015 for modeling
- UV Layout for unwrapping
- Photoshop and Substance Painter for texturing
- Marmoset Toolbag and V-Ray for rendering
NOT included with the file:
=========================
- Light rig/HDRI
- Rulers plane
- Photoshop and Substance Painter source files
Tags:
lowpoly pbr game simulator helicopter russia russian soviet gauge cockpit cabin inside mil mi-8 mi-17 mi-17mt mi-8mt aircraft aviation airforce army copter hip
