Realistic 3d model of Power Panels Board of Helicopter Mi-8MT / Mi-17MT
File formats: 3ds Max 2015 (V-Ray 3.30.04), OBJ, FBX, 3DS
Game ready - perfectly fits for Unity and Unreal

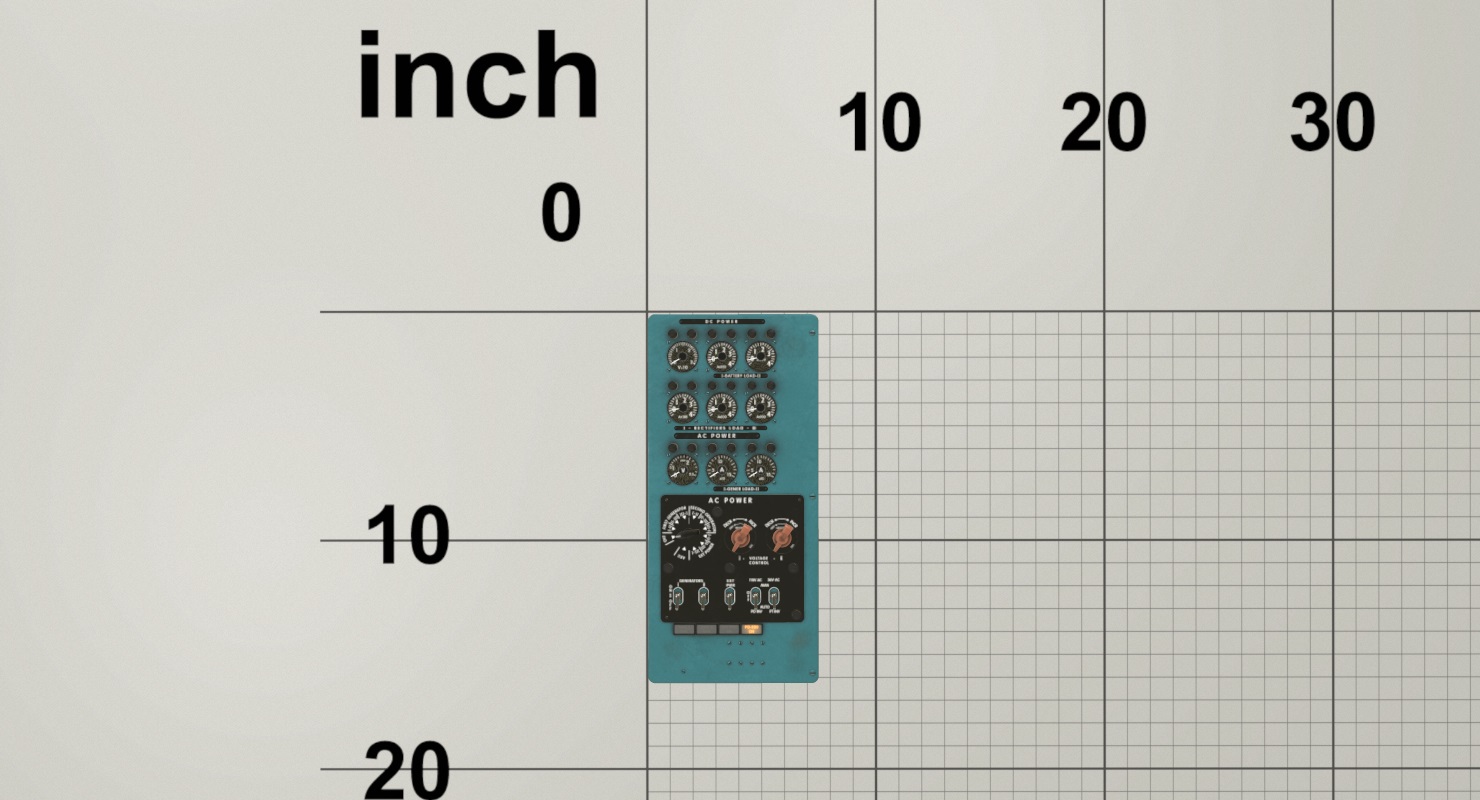

Real world scale
Units used: cm
- The model is animated. All pivots are in the right positions.
- The model has trialngular and quadrangular polygons only (8.5% tris and 91.5% quads)
- The model has logical hierarchy
- The model has 100% Scale, placed in 0,0,0 coordinates and doesn't have rotations
- The model has 36 separate objects (Draw Calls)
- The model is available with prints in Russian language (https://www.flatpyramid.com/3d-models/vehicles-3d-models/aircraft/helicopter/mi-8mt-mi-17mt-power-panels-board-russian/)

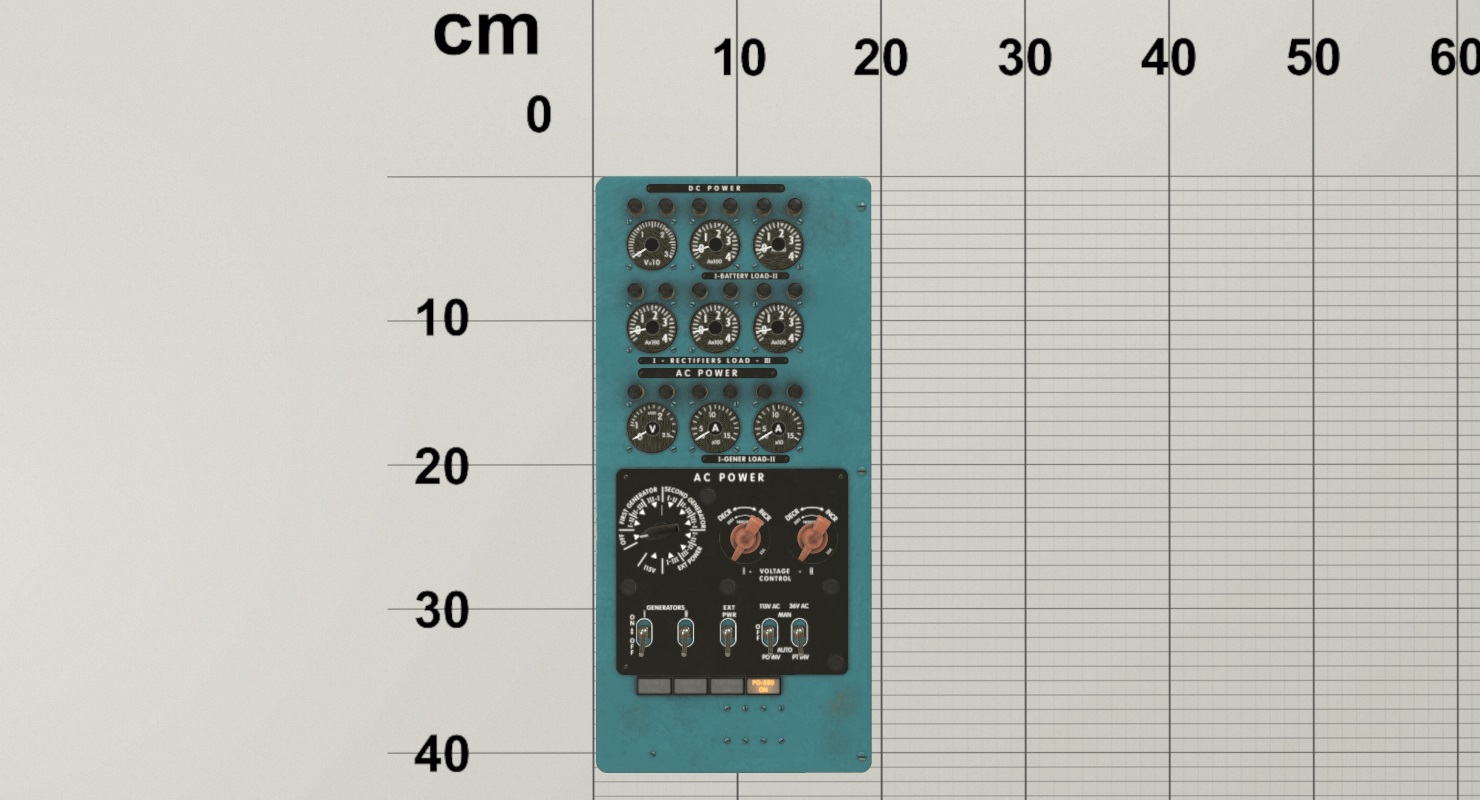

- The model has dimensions 19 x 41 x 4 cm (7.5 x 15.7 x 1.6 inches)
- The model contains
20 535 polys
39 300 tris
21 578 verts
- All parts placed in one layer and joined in one group
- All parts have one material and can be easily merged, if you don't need animation.
- All parts are fully UV unwraped. No multi-materials or color fills.
- All parts and materials have logical names and ready for coding. (no names such as Object001 or Default - 01)
- Some identical parts have the same UV coordinates (overlapped). It saves textel resolution and does not influence on Ambient occlusion map (no black spots)
- PBR textures are available for Specular-Glossiness and Metalness-Roughness workflows
- Base color
- Ambient Occlusion
- Base color
- Ambient Occlusion
Originally created with 3ds Max 2015. No 3rd party plugins required.
- 3ds Max 2015 for modeling
- UV Layout for unwrapping
- Photoshop and Substance Painter for texturing
- Marmoset Toolbag and V-Ray for rendering
NOT included with the file:
- Light rig/HDRI
- Rulers plane
- Photoshop and Substance Painter source files
