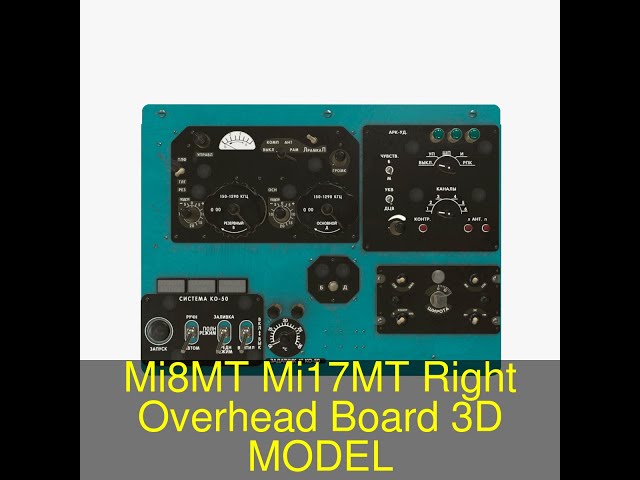

Realistic 3d model of Right Overhead Panels Board of Helicopter Mi-8MT / Mi-17MT
File formats: 3ds Max 2015 (V-Ray 3.30.04), OBJ, FBX, 3DS
Game ready - perfectly fits for Unity and Unreal
Low poly
Real world scale
Units used: cm
- The model is animated. All pivots are in the right positions.
- The model has trialngular and quadrangular polygons only (8% tris and 92% quads)
- The model has logical hierarhy
- The model has 100% Scale, placed in 0,0,0 coordinates and doesn't have rotations
- The model has 53 separate objects (Draw Calls)
- The model is available with prints in English language (https://www.flatpyramid.com/3d-models/vehicles-3d-models/aircraft/helicopter/mi-8mt-mi-17mt-right-overhead-board-english/)
- The model has dimensions 29 x 22 x 4 cm (11.4 x 8.7 x 1.6 inches)
- The model contains
28 309 polys
54 336 tris
30 687 verts
- All parts placed in one layer and joined in one group
- All parts have one material and can be easily merged, if you don't need animation.
- All parts are fully UV unwraped. No multi-materials or color fills.
- All parts and materials have logical names and ready for coding. (no names such as Object001 or Default - 01)
- Some identical parts have the same UV coordinates (overlapped). It saves textel resolution and does not influence on Ambient occlusion map (no black spots)
- PBR textures are available for Specular-Glossiness and Metalness-Roughness workflows
Textures (*.PNG):
=========================
Main 2048x2048:
- Diffuse
- Specular
- Glossiness
- Base color
- Metallic
- Roughness
- Normal
- Ambient Occlusion
- Emission
Glass 1024x1024:
- Diffuse
- Specular
- Glossiness
- Base color
- Metallic
- Roughness
- Ambient Occlusion
- Opacity
Originally created with 3ds Max 2015. No 3rd party plugins required.
Software used:
- 3ds Max 2015 for modeling
- UV Layout for unwrapping
- Photoshop and Substance Painter for texturing
- Marmoset Toolbag and V-Ray for rendering
NOT included with the file:
=========================
- Light rig/HDRI
- Rulers plane
- Photoshop and Substance Painter source files
Tags:
lowpoly pbr game simulator helicopter russia russian soviet gauge cockpit cabin inside mil mi-8 mi-17 mi-17mt mi-8mt aircraft aviation airforce army copter hip
Mi-8MT Mi-17MT has the right overhead board to help the pilot. The right overhead board helps to control and command the helicopter. Mi-8MT Mi-17MT is a Russian medium twin-turbine helicopter, originally designed by the Soviet Union, and now manufactured by Russia. It is a transport helicopter, the Mi-8 is also used as an airborne command post, armed gunship, and reconnaissance platform. Mi-8 is among the world’s most-produced helicopters and used by over 50 countries. As of 2015, it is the third most operational military aircraft in the world.
The Mi-8 is a multipurpose helicopter. It produced in a number of variants. To improve performance, the Mi-8 was re-engined with 1 874 hp TV3-117MT engines to produce the Mi-17. This variant was introduced in 1975. Export customers often use the civil Mi-17 designation, but the CIS air forces use the Mi-8MT designation. Hip-H helicopters in CIS service are often fitted with extra cockpit armor, IR jammers, and chaff/flare dispensers. The same basic helicopter without armament is the Mi-8AMT.
Mi-8 is operated by a crew of 3, including the pilot, co-pilot and flight engineer. It can carry up to 24 fully-equipped troops.
The armed Mi-8 helicopters are fitted with more powerful TV3-117VMA engines, which give an improved hovering ceiling. The maximum slung payload of the armed Mi-8 helicopter is increased to 4,000kg.
The Mi-8 military helicopter is configured with a conventional pod and boom, with a tail rotor and non-retractable tricycle nose wheel, landing gear. Its five-bladed rotor is made from aluminum alloy.
You can use the Mi-8MT Mi-17MT right overhead board russian 3D model in your animation projects, films, and gaming, Download this 3D model only from the FlatPyramid website at the best prices. In case you have any queries regarding the product you can contact us anytime.
