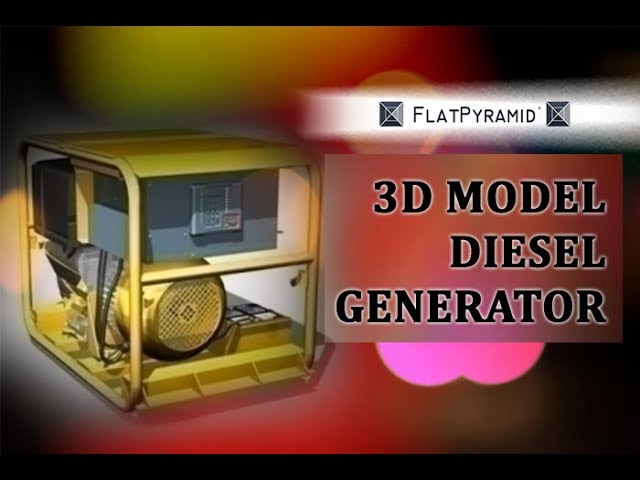

Diesel generator 3D Model (3ds fbx c4d lwo obj)

3D Model by Panaristi

Diesel generator 3D model was originally modelled in cinema4D. Detailed enough for close-up renders. The zip-file contains bodypaint textures and standard materials.

Features:
- Inside scene: Model - 19 textures
- All materials and textures are included.
- No cleaning up necessary, just drop your models into the scene and start rendering.
- No special plugin needed to open scene.

- NOTE - The 3ds, lwo, obj and fbx-files contains only textures, no shaders.

- Phong shading interpolation / Smoothing - 35°

- c4d Version R16
- Polygones - 105573 - Vertices - 87035 - 64 Objects - 19 textures

- obj File - lwo file - 3ds file - fbx file Version 2010

Diesel power plant 3D model (diesel generator set, diesel generator) is a stationary or mobile power plant equipped with one or several electric generators driven by a diesel internal combustion engine. There are also power plants driven by a gasoline engine - a gasoline-electric unit or a gasoline power station and gas piston power plants.

It should be noted that the terms diesel power station, diesel-electric unit and diesel generator are not synonymous with:

  • diesel generator - a device consisting of structurally combined diesel engine and generator;
  • the diesel electric unit in turn includes a diesel generator, as well as auxiliary devices: a frame, control devices, a fuel tank;

A diesel power station is a stationary or mobile unit on the basis of a diesel-electric unit, additionally comprising power distribution devices, automation devices, and a control panel.

As a rule, such power plants combine an alternator and an internal combustion engine, which are mounted on a steel frame, as well as an installation monitoring and control system. An internal combustion engine drives a synchronous or asynchronous electric generator. The motor and electric generator are connected either directly by a flange or through a damper coupling. In the first case, a two-bearing generator is used, that is, a generator having two support bearings, and in the second case - with one support bearing (single-bearing).

Diesel power plants differ in electrical output, type of current (alternating three-phase / single-phase, constant), output voltage, and current frequency (for example, 50, 60, 400 Hz).

Also, diesel power plants are divided according to the type of cooling of a diesel engine, air or liquid. Power plants with a diesel engine, liquid cooling - are units of high power and size.

To destination
Portable (household, portable) - power plants with a diesel engine air cooling capacity from 0.3 kW to 20 kW.
Stationary (industrial) - power plants with a diesel engine liquid cooling. As a rule, the output current is three-phase, with voltage from 400 / 230V to 10 kV. The unit capacity is from 8 kW (10 kVA) to 2000 kW (2400 kVA).

Download Diesel generator 3D model on Flatpyramid.

Available Sample File for Download

$75.90 $59.00
card Safety
Delivery Format: Download Only!

Available Source 3D Model File Formats

Specifications

  • Vertices87035
  • Polygons105573
  • GeometryPolygonal
  • AnimatedNo
  • MaterialsYes
  • RiggedNo
  • TexturesYes
  • File-formats3D Studio (.3ds), Autodesk FBX file (.fbx), Cinema 4D (.c4d), Lightwave (.lwo, .lw, .lws), Wavefront (.obj)
  • NID21745
3D Model ID: 188584

Published on: February 13, 2011
3D Artist: Panaristi
