Antares 20E 3D Model (3ds max dxf fbx c4d dae ma mb obj)

3D Model by tartino

Antares 20E self-launching glider.
Only cinema4d R10 has materials.
Polygons 3837
Vertices 3943

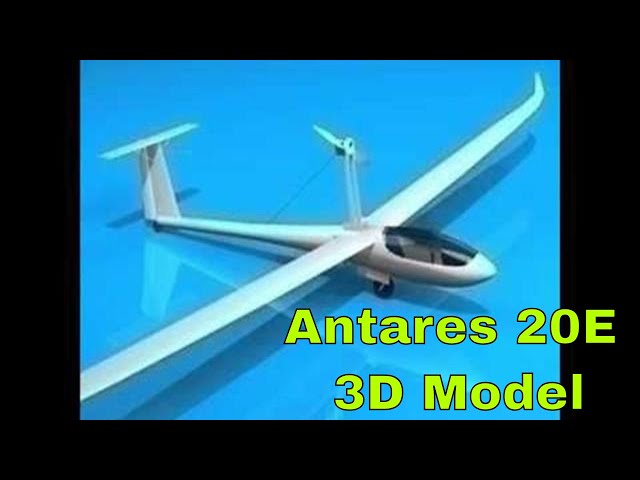

zip file encloses two antares model, one in take-off configuration (engine ang landing gear out), and one in sail flying with engine retracted

Antares 20E self-launching glider.
Only cinema4d R10 has materials.
Polygons 3837
Vertices 3943
zip file encloses two antares model, one in take-off configuration (engine ang landing gear out), and one in sail flying with engine retracted.
The Antares 20E is a self-launching glider with a 42-kW electric motor and SAFT VL41M lithium-ion batteries. It can climb up to 3 000 meters with fully charged cells. The motor EM42 is an brushless fixed-shaft electric motor running on DC-DC current. Running at 190-288 V, and pulling up to 160 A, the 42 kW motor can deliver maximum torque 216 N.m over a range 160-1600 RPM with a total efficiency of 90. The battery system consists of two battery packs positioned in the leading edges of both inner wings 72 cells divided into 24 modules containing 3 cells each. The battery life is expected to 3000 cycles or 20 years.


The Antares is a glider built by Lange Aviation produced with three different wingspan, 18,20, and 23 meters. The 20 and 23 meter variants can be equipped with a 42 KW electric motor.

The battery system consists of two battery packs positioned in the leading edges of both inner wings. The battery life is expected to be 3000 cycles or 20 years. The capacity of the battery is 41 Ah; it can deliver 13 minutes at full speed.

At high temperatures, motor and electronic temperature limitations can limit the achievable climb height. The charger is integrated inside the fuselage so when landing elsewhere the pilot merely has to find a 16A electric socket.

The undercarriage and engine doors are electro-hydraulically operated. The tail wheel is steerable. The wing has an elliptical platform, with winglets and wing-tip wheels. The glide polar shows excellent high speed performance. The glider has a modem connected to its main computer so that the technicians can run diagnostics remotely.

At FlatPyramid, we have developed a strikingly beautiful 3-D model of the Antares 20E. It is available in different formats for commercial, non-commercial and editorial purposes. The design can be used in any project. It is one of the most detailed models of a Antares 20E that you will come across on the web.

In case of any query, please feel free to contact. We will assist you with all your concerns and questions; it will be our pleasure to serve your needs.

Thank you for showing interest in buying 3-D model of a Antares 20E.

Available Sample File for Download

$88.00 $80.00
card Safety
Delivery Format: Download Only!

Available Source 3D Model File Formats

Specifications

  • Vertices3943
  • Polygons3837
  • GeometryPolygonal
  • AnimatedNo
  • MaterialsNo
  • RiggedNo
  • TexturesNo
  • File-formats3D Studio (.3ds), 3D Studio Max file (.max), AutoCAD (.dxf), Autodesk FBX file (.fbx), Cinema 4D (.c4d), Collada (.dae), Maya (.ma .mb), Wavefront (.obj)
  • Optimized-forAugmented Reality
  • NID19240
3D Model ID: 186182

Published on: February 13, 2011
3D Artist: tartino
